ZBEE PRO

ZBEE Pro Product

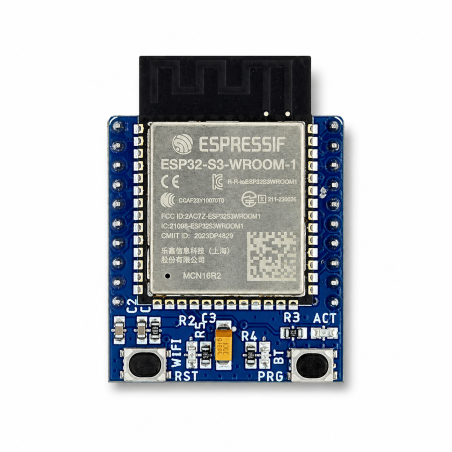

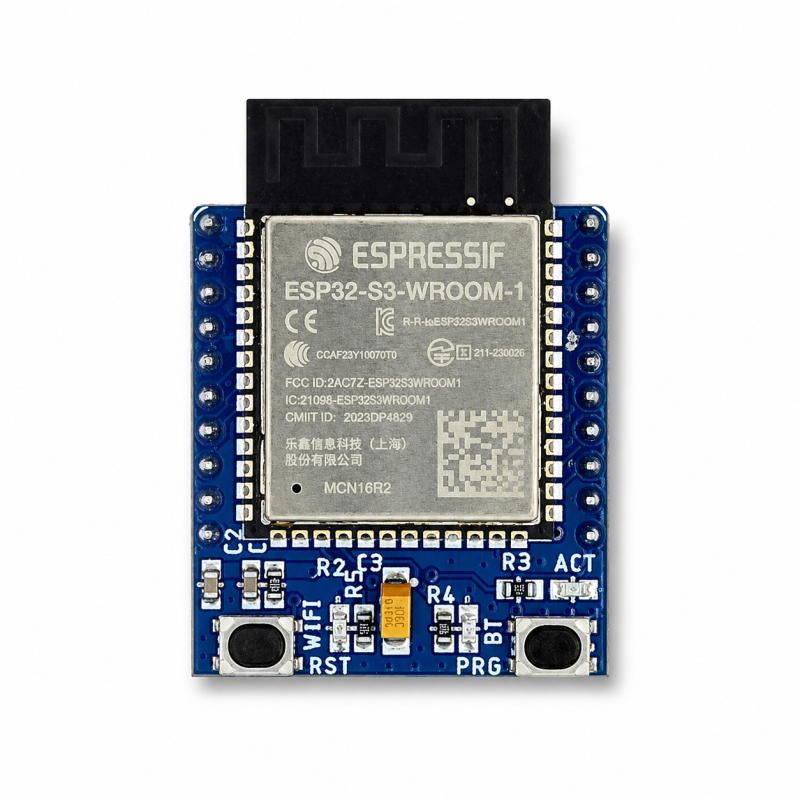

ZBEE Pro is a compact wireless communication module designed for embedded systems, robotics, remote control, and custom electronics projects. It supports both WiFi and BLE operation modes, allowing flexible communication depending on the application.

In BLE mode, ZBEE Pro can pair with the VR R1 Ring Remote Controller and supports a customizable packet protocol of up to 12 bytes, making it suitable for wireless control, handheld interfaces, and robotics command input.

In WiFi mode, two ZBEE Pro modules can pair with each other to create a transparent wireless UART bridge. Data streams sent through one module can be transmitted wirelessly and output through the UART of the other module, making it useful for cable replacement, remote serial communication, and embedded device links.

Both BLE and WiFi communication modes are routed through the module’s UART interface, providing a simple and familiar communication method for microcontrollers and host devices. The UART interface supports baud rates up to 921600 bps, enabling high-speed data transfer for demanding applications.

A dedicated configuration software is provided to retrieve and configure module parameters, making setup and customization easier for developers and system integrators.

Key Features

• Supports WiFi mode and BLE mode

• BLE pairing with VR R1 Ring Remote Controller

• Customizable BLE packet protocol up to 12 bytes

• WiFi transparent byte-stream transmission between two ZBEE Pro modules

• UART-based user communication interface

• UART baud rate up to 921600 bps

• Configuration software provided for parameter retrieval and setup. Please download it from the attachement for the ZBEE Xplorer

• Suitable for robotics, embedded systems, remote control, and wireless UART applications
