X-WRT Customized Mini Router
$150.00
No tax
Use for ROS1, ROS2 robotics remote applications.
Security policy
Secure checkout and customer information protection.
Delivery policy
Orders are currently fulfilled through our Shopee store.
Return policy
Please contact us if you need support for your order.
Description:
1. This is an OEM unit.Fully customized with extra hardware features
2. Support Repeater, LAN, WiFi 2.4G, 300Mbps

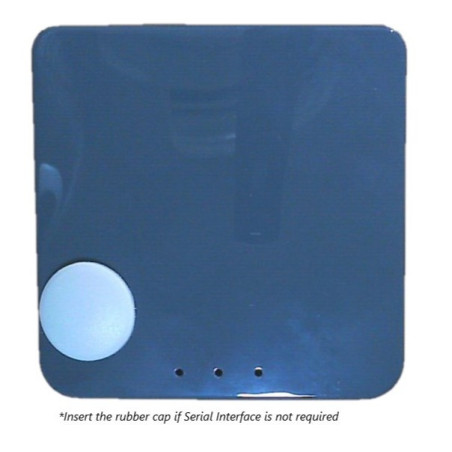

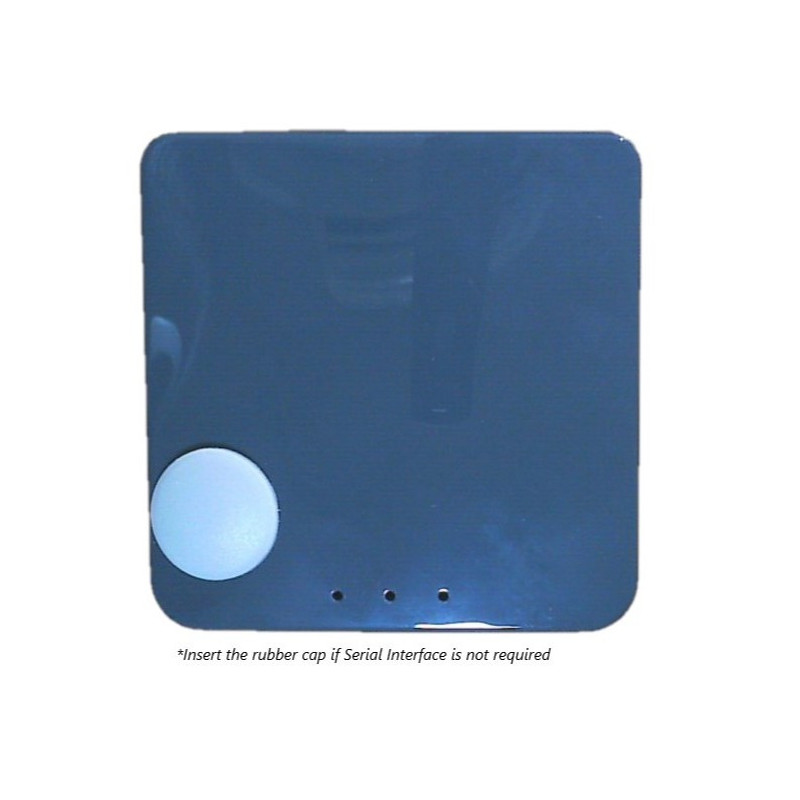

3. Support Serial interface. Header pins are soldered can be accessed and connected to any MCU such as STM32. Default port is 2001
4. Support USB Camera. Access connected Camera via web browser by http://192.168.8.1:8080
5. Use for robot and ROS application
6. Existing use in smart robot interfacing with MCU
Specifications
CPU: qca9531, @ 650MHz SoC
Memory: DDR2 128MB
Storage: 16MB Nor Flash
Antennas: Internal (for AR300M16)/ External (for AR300M16-EXT)
USB GPIO Control
Protocol: IEEE 802.11b/g/n
Wi-Fi Speed: 300Mbps (2.4GHz)
Interface: 1 x WAN Ethernet port, 1 x LAN Ethernet port, 1 x USB2.0 port
Ethernet Port: 10/100M
Power Input: 5V/1A
Power Consumption: <2W
Operating Temperture: 0 ~ 40°C (32 ~ 104°F)
Storage Temperture: -20~70°C (-4~158°F)
